Seeing small changes is a big achievement

Figure 8 from Amjad et al 2022Some years ago I wrote with great excitement about publishing a paper in Royal Society Open Science [see ‘Press release!‘ on November 15th, 2017].  This has become a routine event; however, the excitement returned earlier this month when we had a paper published in the Proceedings of Royal Society of London on ‘A thermal emissions-based real-time monitoring system for in situ detection of cracks’.  The Proceedings were first published in February 1831 and this is only the second time in my career that my group has published a paper in them.  The last time was ten years ago and was also about cracks: ‘Quantitative measurement of plastic strain field at a fatigue crack tip’.  I have already described this earlier work in a post [see ‘Scattering electrons reveal dislocations in material structure’ on November 11th, 2020].  This was the first time that the size and shape of the plastic zone around a crack had been measured directly rather than inferred from other measurements.  It required an expensive scanning electron microscope and a well-equipped laboratory.  In contrast, the work in the paper published this month uses components that can be purchased for the price of a smart phone and assembled into a device not much larger than a smart phone.  The device detects the changes in the temperature distribution over the surface of the metal caused by the propagation of a crack due to repeated loading of the metal.  It is based on the principles of thermoelastic stress analysis [see ‘Counting photons to measure stress‘ on November 18th, 2015], which is a well-established measurement technique that usually requires expensive infra-red cameras.  Our key innovation is to not aim for absolute measurement values, which allows us to ignore calibration requirements, and instead to look for changes in the temperature distribution on the metal surface by extracting feature vectors from the images [see ‘Recognising strain‘ on October 28th 2015].  Our approach lowers the cost of the equipment required by several orders of magnitude, achieves comparable or better resolution of crack growth (around 1 mm) and will function at lower loading frequencies than techniques based on classical thermoelastic stress analysis.  Besides crack analysis, the common theme of the two papers is the innovative use of image processing to identify change, based on the fracture mechanics of crack propagation.

The research reported in this month’s paper was largely performed as part of the DIMES project about which I have written many posts.

The University of Liverpool was the coordinator of the DIMES project and the other partners were Empa, Dantec Dynamics GmbH and Strain Solutions Ltd.  Airbus was the topic manager on behalf of the Clean Sky 2 Joint Undertaking.

Logos of Clean Sky 2 and EUThe DIMES project received funding from the Clean Sky 2 Joint Undertaking under the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 820951.

The opinions expressed in this blog post reflect only the author’s view and the Clean Sky 2 Joint Undertaking is not responsible for any use that may be made of the information it contains.

References:

Amjad, K., Lambert, C.A., Middleton, C.A., Greene, R.J., Patterson, E.A., 2022, A thermal emissions-based real-time monitoring system for in situ detection of cracks, Proc. R. Soc. A., doi: 10.1098/rspa.2021.0796.

Yang, Y., Crimp, M., Tomlinson, R.A., Patterson, E.A., 2012, Quantitative measurement of plastic strain field at a fatigue crack tip, Proc. R. Soc. A., 468(2144):2399-2415.

Image: Figure 8 from Amjad et al, 2022, Proc. R. Soc. A., doi: 10.1098/rspa.2021.0796.

Scattering electrons reveal dislocations in material structure

Figure 9 from Yang et al, 2012. Map of plastic strain around the crack tip (0, 0) based on the full width of half the maximum of the discrete Fourier transforms of BSE images, together with thermoelastic stress analysis data (white line) and estimates of the plastic zone size based on approaches of Dugdale's (green line) and Irwin's (blue line; dimensions in millimetres).

Figure 9 from Yang et al, 2012. Map of plastic strain around the crack tip (0, 0) based on the full width of half the maximum of the discrete Fourier transforms of BSE images, together with thermoelastic stress analysis data (white line) and estimates of the plastic zone size based on approaches of Dugdale’s (green line) and Irwin’s (blue line; dimensions in millimetres).

It is almost impossible to manufacture metal components that are flawless.  Every flaw or imperfection in a metallic component is a potential site for the initiation of a crack that could lead to the failure of the component [see ‘Alan Arnold Griffith’ on April 26th, 2017].  Hence, engineers are very interested in understanding the mechanisms of crack initiation and propagation so that these processes can be prevented or, at least, inhibited.  It is relatively easy to achieve these outcomes by not applying loads that would supply the energy to drive failure processes; however, the very purpose of a metal component is often to carry load and hence a compromise must be reached.  The deep understanding of crack initiation and propagation, required for an effective and safe compromise, needs detailed measurements of evolution of the crack and of its advancing front or tip [depending whether you are thinking in three- or two-dimensions].  When a metal is subjected to repeated cycles of loading, then a crack can grow incrementally with each load cycle; and in these conditions a small volume of material, just ahead of the crack and into which the crack is about to grow, has an important role in determining the rate of crack growth.  The sharp geometry of the crack tip causes localisation of the applied load in the material ahead of the crack thus raising the stress sufficiently high to cause permanent deformation in the material on the macroscale.  The region of permanent deformation is known as the crack tip plastic zone.  The permanent deformation induces disruptions in the regular packing of the metal atoms or crystal lattice, which are known as dislocations and continued cyclic loading causes the dislocations to move and congregate around the crack tip.  Ultimately, dislocations combine to form voids in the material and then voids coalesce to form the next extension of the crack.  In reality, it is an oversimplification to refer to a crack tip because there is a continuous transition from a definite crack to definitely no crack via a network of loosely connected voids, unconnected voids, aggregated dislocations almost forming a void, to a progressively more dispersed crowd of dislocations and finally virgin or undamaged material.  If you know where to look on a polished metal surface then you could probably see a crack about 1 mm in length and, with aid of an optical microscope, you could probably see the larger voids forming in the material ahead of the crack especially when a load is applied to open the crack.  However, dislocations are very small, of the order tens of nanometres in steel, and hence not visible in an optical microscope because they are smaller than the wavelength of light.  When dislocations congregate in the plastic zone ahead of the crack, they disturb the surface of the metal and causing a change its texture which can be detected in the pattern produced by electrons bouncing off the surface.  At Michigan State University about ten years ago, using backscattered electron (BSE) images produced in a scanning electron microscope (SEM), we demonstrated that the change in texture could be measured and quantified by evaluating the frequency content of the images using a discrete Fourier transform (DFT).  We collected 225 square images arranged in a chessboard pattern covering a 2.8 mm by 2.8 mm square around a 5 mm long crack in a titanium specimen which allowed us to map the plastic zone associated with the crack tip (figure 9 from Yang et al, 2012).  The length of the side of each image was 115 microns and 345 pixels so that we had 3 pixels per micron which was sufficient to resolve the texture changes in the metal surface due to dislocation density.  The images are from our paper published in the Proceedings of the Royal Society and the one below (figure 4 from Yang et al, 2012) shows four BSE images along the top at increasing distances from the crack tip moving from left to right.  The middle row shows the corresponding results from the discrete Fourier transform that illustrate the decreasing frequency content of the images moving from left to right, i.e. with distance from the crack.  The graphs in the bottom row show the profile through the centre of the DFTs.  The grain structure in the metal can be seen in the BSE images and looks like crazy paving on a garden path or patio.  Each grain has a particular and continuous crystal lattice orientation which causes the electrons to scatter differently from it compared to its neighbour.  We have used the technique to verify measurements of the extent of the crack tip plastic zone made using thermoelastic stress analysis (TSA) and then used TSA to study ‘Crack tip plasticity in reactor steels’ [see post on March 13th, 2019].

Figure 4 from Yang et al, 2012. (a) Backscattered electron images at increasing distance from crack from left to right; (b) their corresponding discrete Fourier transforms (DFTs) and (c) a horizontal line profile across the centre of each DFT.

Figure 4 from Yang et al, 2012. (a) Backscattered electron images at increasing distance from crack from left to right; (b) their corresponding discrete Fourier transforms (DFTs) and (c) a horizontal line profile across the centre of each DFT.

Reference: Yang, Y., Crimp, M., Tomlinson, R.A., Patterson, E.A., 2012, Quantitative measurement of plastic strain field at a fatigue crack tip, Proc. R. Soc. A., 468(2144):2399-2415.

Alan Arnold Griffith

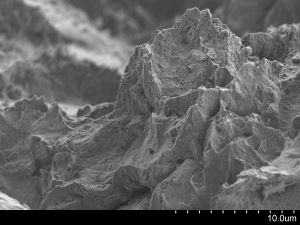

Everest of fracture surface [By Kaspar Kallip (CC BY-SA 4.0), via Wikimedia Commons]

Some of you maybe aware that I hold the AA Griffith Chair of Structural Materials and Mechanics at the University of Liverpool.  I feel that some comment on this blog about Griffith’s seminal work is long overdue and so I am correcting that this week.  I wrote this piece for a step in week 4 of a five-week MOOC on Understanding Super Structures which will start on May 22nd, 2017.

Alan Arnold Griffith was a pioneer in fracture mechanics who studied mechanical engineering at the University of Liverpool at the beginning of the last century.  He earned a Bachelor’s degree, a Master’s degree and a PhD before moving to work for the Royal Aircraft Establishment, Farnborough in 1915.

He is famous for his study of failure in materials.  He observed that there were microscopic cracks or flaws in materials that concentrated the stress.  And he postulated that these cracks were the source of failure in a material.  He used strain energy concepts to analyse the circumstances in which a crack or flaw would propagate and cause failure of a component.  In order to break open a material, we need to separate adjacent atoms from one another, and break the bonds between them.  This requires a steady supply of energy to do the work required to separate one pair of atoms after another and break their bonds.  It’s a bit like unpicking a seam to let out your trousers when you’ve put on some weight.  You have to unpick each stitch and if you stop working the seam stays half undone.  In a material with a stress raiser or concentration, then the concentration is quite good at delivering stress and strain to the local area to separate atoms and break bonds.  This is fine when external work is being applied to the material so that there is a constant supply of new energy that can be used to break bonds.  But what about, if the supply of external energy dries up, then can the crack continue to grow?  Griffith concluded that in certain circumstances it could continue to grow.

He arrived at this conclusion by postulating that the energy required to propagate the crack was the work of fracture per unit length of crack, that’s the work needed to separate two atoms and break their bond.  Since atoms are usually distributed uniformly in a material, this energy requirement increases linearly with the length of the crack.  However, as the crack grows the material in its wake can no longer sustain any load because the free surface formed by the crack cannot react against a load to satisfy Newton’s Law.  The material in the wake of the crack relaxes, and gives up strain energy [see my post entitled ‘Slow down time to think (about strain energy)‘ on March 8th, 2017], which can be used to break more bonds at the crack tip.  Griffith postulated that the material in the wake of the crack tip would look like the wake from a ship, in other words it would be triangular, and so the strain energy released would proportional to area of the wake, which in turn would be related to the crack length squared.

So, for a short crack, the energy requirement to extend the crack exceeds the strain energy released in its wake and the crack will be stable and stationary; but there is a critical crack length, at which the energy release is greater than the energy requirements, and the crack will grow spontaneously and rapidly leading to very sudden failure.

While I have followed James Gordon’s lucid explanation of Griffith’s theory and used a two-dimensional approach, Griffith actually did it in three-dimensions, using some challenging mathematics, and arrived at an expression for the critical length of crack. However, the conclusion is the same, that the critical length is related to the ratio of the work required for new surfaces and the stored strain energy released as the crack advances.  Griffith demonstrated his theory for glass and then others quickly demonstrated that it could be applied to a range of materials.

For instance, rubber can absorb a lot of strain energy and has a low work of fracture, so the critical crack length for spontaneous failure is very low, which is why balloons go pop when you stick a pin in them.  Nowadays, tyre blowouts are relatively rare because the rubber in a tyre is reinforced with steel cords that increase the work required to create new surfaces – it’s harder to separate the rubber because it’s held together by the cords.

By the way, James Gordon’s explanation of Griffith’s theory of fracture, which I mentioned, can be found in his seminal book: ‘Structures, or Why Things Don’t Fall Down’ published by Penguin Books Ltd in 1978.  The original work was published in the Proceedings of the Royal Society as ‘The Phenomena of Rupture and Flow in Solids’ by AA Griffith, February 26, 1920.
